检验医学 ›› 2018, Vol. 33 ›› Issue (11): 1013-1016.DOI: 10.3969/j.issn.1673-8640.2018.011.010

• 技术研究与评价·论著 • 上一篇    下一篇

人血清哇巴因UPLC-MS/MS检测方法的建立和方法比对

赵银霞1, 欧美贤1, 曲毅2, 陆优丽1, 张美微1, 李水军1

  1. 1.上海市徐汇区中心医院中心实验室,上海 200031
    2.上海市徐汇区中心医院老年科,上海 200031
  • 收稿日期:2017-07-26 出版日期:2018-11-30 发布日期:2018-11-28
  • 作者简介:null

    作者简介:赵银霞,女,1983年生,硕士,主管技师,主要从事临床检验工作。欧美贤,女,1984年生,硕士,主管药师,主要从事临床药物浓度检测工作。赵银霞和欧美贤对本研究具有同等贡献,并列为第一作者。

    通信作者:李水军,联系电话:021-54031835。

  • 基金资助:
    上海市徐汇区中心医院科研资助项目(2012XHCH04)

Determination of human serum ouabain by UPLC-MS/MS and methodology comparison

ZHAO Yinxia1, OU Meixian1, QU Yi2, LU Youli1, ZHANG Meiwei1, LI Shuijun1

  1. 1. Central Laboratory,Shanghai Xuhui Central Hospital,Shanghai 200031,China
    2. Department of Geriatrics,Shanghai Xuhui Central Hospital,Shanghai 200031,China
  • Received:2017-07-26 Online:2018-11-30 Published:2018-11-28

摘要:

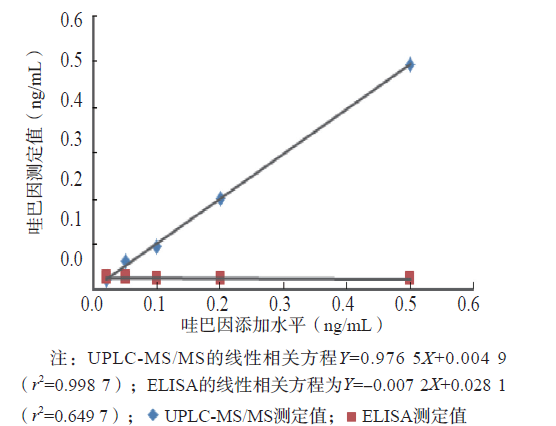

目的 建立超高效液相色谱串联质谱(UPLC-MS/MS)检测人血清哇巴因的方法。方法 采用高特异性的UPLC-MS/MS,以氘标记的哇巴因-d3作为内标。样本采用固相萃取(SPE)前处理方法,以反相色谱柱负离子模式及电喷雾电离源(ESI)检测血清哇巴因水平。对建立的方法进行方法学(基质效应、回收率、准确度、批内精密度、批间精密度及稳定性)验证。采用建立的UPLC-MS/MS方法检测20名体检健康者及40例高血压患者血清哇巴因水平,并与酶联免疫吸附试验(ELISA)进行比较。结果 UPLC-MS/MS检测血清哇巴因的标准曲线范围为0.02~5.0 ng/mL,最低定量检测限(LLOQ)为0.02 ng/mL。采用ABN固相萃取小柱进行样本前处理的基质效应较小,且回收率较高,达85%。LLOQ和低值(0.06 ng/mL)、中值(0.6 ng/mL)、高值(4 ng/mL)质控品的准确度分别为108.0%、89.2%、101.0%、103.0%。3个水平质控品的批内变异系数(CV)分别为2.87%、1.95%、0.56%,批间CV分别为5.98%、1.90%、0.75%。样本室温过夜放置16 h及样本前处理后室温放置自动进样器48 h的偏差均<15%。采用UPLC-MS/MS检测哇巴因,正常对照者及高血压患者血清中均未检测到哇巴因。采用ELISA测定血清哇巴因,高血压患者为0.096 ng/mL,正常对照者为0.062 ng/mL。UPLC-MS/MS检测5个水平(0.02、0.05、0.10、0.20、0.50 ng/mL)的哇巴因标准品,其测定结果与对应的哇巴因标准品浓度呈正相关,且线性较好(r2>0.99),准确度较高;而ELISA检测5个水平哇巴因标准品的结果均很接近(0.024 9~0.029 6 ng/mL)。结论 建立了检测人血清哇巴因的UPLC-MS/MS方法,未检测到正常人及高血压患者的血清哇巴因。UPLC-MS/MS与ELISA检测血清哇巴因的结果存在较大差异。

关键词: 哇巴因, 超高效液相色谱串联质谱, 固相萃取, 酶联免疫吸附试验, 高血压

Abstract:

Objective To establish an ultra high performance liquid chromatography-tandem mass spectrometry(UPLC-MS/MS) for the determination of human serum ouabain. Methods High-specific UPLC-MS/MS was used. A deuterium-labeled ouabain-d3 was used as internal standard. Serum samples were prepared with solid phase extraction(SPE),and a reversed phase column was used for chromatography separation. The mass spectrometer was operated in negative-ion mode with electrospray ionization(ESI) source. Methodology validation included the evaluation of matrix effect,recovery,accuracy,within-run precision,between-run precision and stability. The established UPLC-MS/MS was used to determine serum ouabain in 40 hypertension patients and 20 healthy subjects (healthy control group). The results of UPLC-MS/MS were compared with those of enzyme-linked immunosorbent assay (ELISA). Results The UPLC-MS/MS had a linear range from 0.02 to 5.00 ng/mL. The lower limit of quantification (LLOQ) was 0.02 ng/mL. The matrix effect of pretreatment with ABN solid phase extraction column was the smallest. The recovery rate was high (85%). The accuracies of LLOQ,low-level (0.06 ng/mL),middle-level (0.6 ng/mL) and high-level (4 ng/mL) quality control materials were 108.0%,89.2%,101.0% and 103.0%,respectively. The within-run coefficients of variation (CV) were 2.87%,1.95% and 0.56%,and the between-run CV were 5.98%,1.90% and 0.75%. The samples placed at room temperature for 16 h were stable,and the processed samples placed in autosampler at room temperature for 48 h were stable. Both biases were <15%. The results showed that both healthy control and hypertension groups had undetectable serum ouabain level by the established UPLC-MS/MS. The levels were 0.096 ng/mL in hypertension group and 0.062 ng/mL in healthy control group when they were determined by ELISA. Ouabain standard materials at 5 different levels (0.02,0.05,0.10,0.20 and 0.50 ng/mL) were determined by UPLC-MS/MS. It showed a positive correlation between the results and the corresponding levels with good linearity(r2>0.99)and high accuracy. The results of 5 samples determined by ELISA were very close(0.024 9-0.029 6 ng/mL). Conclusions The level of serum ouabain is undetectable both in healthy control and hypertension groups by the established UPLC-MS/MS. There is difference for the results of serum ouabain determination between UPLC-MS/MS and ELISA.

Key words: Ouabain, Ultra high performance liquid chromatography-tandem mass spectrometry, Solid phase extraction, Enzyme-linked immunosorbent assay, Hypertension
