检验医学 ›› 2018, Vol. 33 ›› Issue (2): 132-138.DOI: 10.3969/j.issn.1673-8640.2018.02.009

• 技术研究与评价_论著 • 上一篇    下一篇

HPLC-MS/MS检测血浆百草枯浓度方法的建立

岳晓静1, 李卫2, 李平法3

  1. 1.焦作市妇幼保健院检验科,河南 焦作 454000;
    2.焦作市第一人民医院检验科,河南 焦作 454000;
    3.新乡医学院医学检验学院,河南 新乡 453004;
  • 收稿日期:2017-03-12 出版日期:2018-02-28 发布日期:2018-03-02
  • 作者简介:null

    作者简介:岳晓静,女,1984年生,硕士,主管技师,主要从事临床生化检验工作。

Determination of paraquat in plasma by HPLC-MS/MS

YUE Xiaojing1, LI Wei2, LI Pingfa3

  1. 1. Department of Clinical Laboratory,Jiaozuo Maternal and Child Health Hospital,Jiaozuo 454000,Henan,China;
    2. Department of Clinical Laboratory,Jiaozuo First People's Hospital,Jiaozuo 454000,Henan,China;
    3. School of Laboratory Medicine,Xinxiang Medical University,Xinxiang 453004,Henan,China;
  • Received:2017-03-12 Online:2018-02-28 Published:2018-03-02

摘要:

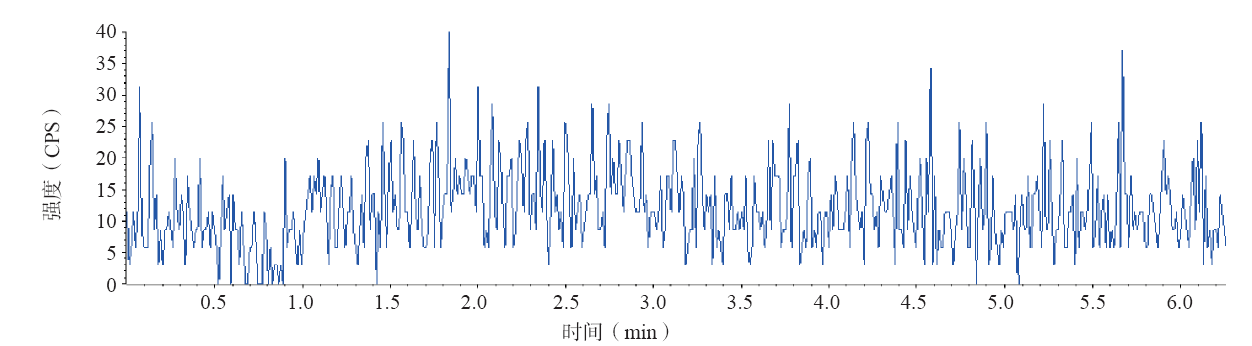

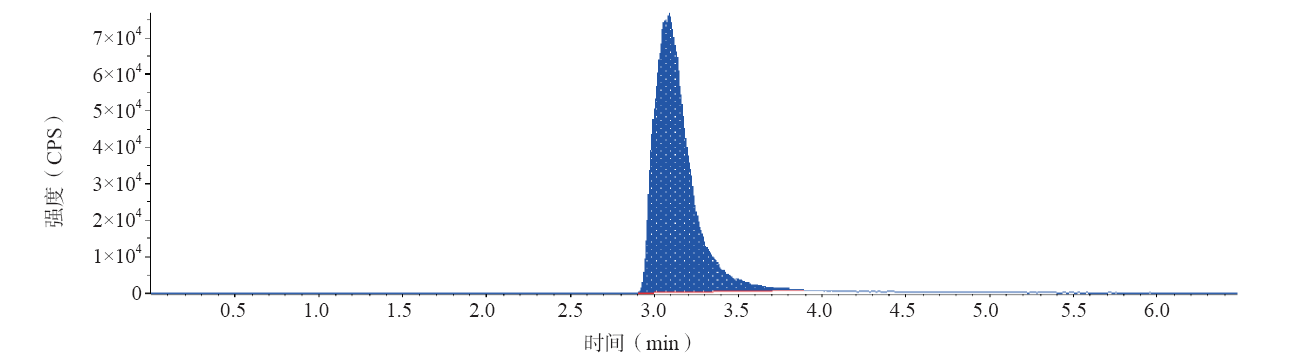

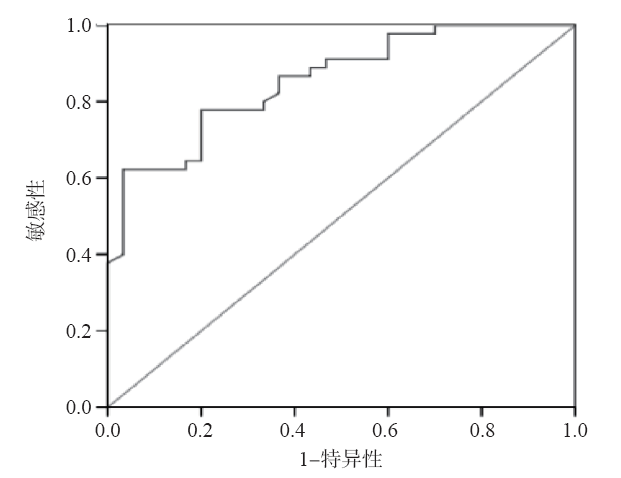

目的 建立高效液相色谱串联质谱(HPLC-MS/MS)检测血浆百草枯浓度的方法。方法 选用Phenomenex Kinetex 2.6 μm HILIC色谱柱(100.0 mm×2.1 mm),以1%甲酸水溶液(含250 mmol/L甲酸铵)为流动相A、乙腈为流动相B,梯度洗脱,流速为0.35 mL/min,进样量为10 μL,柱温为40 ℃;使用电喷雾电离(ESI)源,采用正离子条件下多离子反应监测扫描模式。百草枯和内标乙基百草枯的离子对分别为质/荷比(m/z)92.7→171.0和m/z 107.0→185.1。对建立的HPLC-MS/MS进行方法学评价(线性范围、定量下限、准确度、精密度、选择性和基质效应、稳定性),并检测75例百草枯急性中毒患者的血浆百草枯浓度,采用受试者工作特征(ROC)曲线评估血浆百草枯浓度对临床结局的判断价值。结果 HPLC-MS/MS检测百草枯浓度在54.28~13 190.00 ng/mL范围内具有良好线性关系(Y=0.000 1X+0.011 6,r2=0.998 3)。定量下限处的批内平均准确度为96.31%~120.04%,批间准确度为104.43%;高、中、低浓度批内和批间检测值与理论值的偏差均在±15%范围内;高、中、低浓度及定量下限处的批内和批间相对标准偏差(RSD)均<15%。随机选择6份空白基质考察方法的选择性和基质效应,结果表明百草枯出峰位置无干扰,方法选择性好;高、低浓度处经内标归一化的基质因子的变异系数均<15%,基质效应符合要求。样本室温放置可稳定1 d,2~8 ℃放置可稳定1周,-80 ℃冻存可稳定1个月,反复冻融处理3次对结果无影响。75例百草枯中毒患者的血浆百草枯浓度为2 820(0~22 200)ng/mL,死亡组血浆百草枯浓度明显高于存活组(P<0.05)。ROC曲线分析显示血浆百草枯浓度判断临床结局的ROC曲线下面积为0.855,最佳临界值为2 431 ng/mL。结论 建立的HPLC-MS/MS方法可用于临床血浆百草枯浓度的常规检测。

关键词: 百草枯, 高效液相色谱串联质谱法, 方法学评价

Abstract:

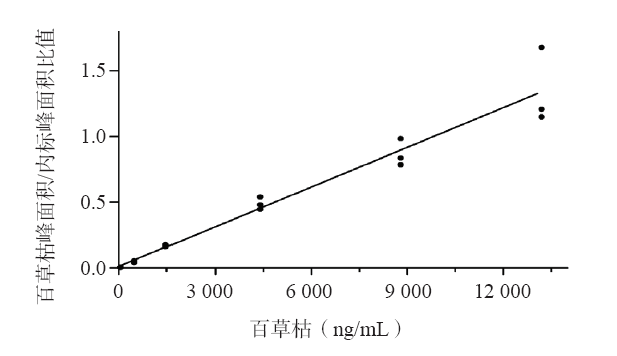

Objective To establish high performance liquid chromatography-tandem mass spectrometry(HPLC-MS/MS) for the determination of paraquat in plasma. Methods Phenomenex Kinetex 2.6 μm HILIC (100.0 mm×2.1 mm) was selected as chromatographic column,mobile phase A was 1% formic acid aqueous solution (with 250 mmol/L ammonium formate),and mobile phase B was acetonitrile. Gradient elution was performed,the flow rate was 0.35 mL/min,the sample volume was 10 μL,and the column temperature was 40 ℃. Electrospray ionization(ESI) source and positive ion multiple reaction monitoring scan mode were used. The mass-to-charge ratio(m/z)of paraquat select ion was 92.7→171.0,and the m/z of ethyl-paraquat selected ion was 107.0→185.1. The methodology(linear range,quantitative limit,accuracy,precision,selectivity,matrix effect and stability) was evaluated. Plasma specimens of 75 patients with acute paraquat poisoning were determined. Receiver operating characteristic(ROC) curve was used to assess plasma paraquat level for diagnosis. Results There was a linearity at the level of 54.28-13 190.00 ng/mL,and the linear equation was Y=0.000 1X+0.011 6(r2=0.998 3). The within-run and between-run accuracies were 96.31%-120.04% and 104.43% at the quantitative limit levels. The bias between within-run and between-run accuracies and listed value were ±15% at the high,medium or low concentration. The within-run and between-run relative standard deviations(RSD) were <15% at the high,medium and low concentrations or quantitative limit levels. The selectivity and matrix effect of the method were assessed,and 6 blank matrix were selected randomly. The location of the paraquat peaks appeared without interference,and the method was selective. The coefficient of variation of matrix factor,which was normalized by internal standard,was <15% at the high or low concentration,and the matrix effect met related requirements. Specimens can be stable being placed within 1 d at room temperature,within 1 week at 2-8 ℃ refrigerator and within 1 month at -80 ℃ refrigerator and being stable after repeating freezing and thawing for 3 times. The median was 2 820(0-22 200) ng/mL. The median in survival group was higher than that in death group(P<0.05). The area under ROC curve for plasma level of paraquat predicting outcome was 0.855. The optimal cut-off value was 2 431 ng/mL. Conclusions The established HPLC-MS/MS can be used to clinical routine determination for plasma level of paraquat.

Key words: Paraquat, High performance liquid chromatography-tandem mass spectrometry, Methodology evaluation
